The Difference Between Residential and Commercial Elevators

If you’re deciding between a residential elevator or a commercial elevator, it is important to understand the differences between the two types in terms of design intent, technical configuration, compliance standards, and installation requirements. Both systems will move passengers vertically, but they will differ significantly with respect to load capacity, structural design, drive types and frequency of usage. For homeowners in Malaysia that want to use vertical mobility solutions, the differences between residential vs commercial elevators will help to make a technologically sound and cost-effective choice.

For residential applications, companies like Nibav, which specialize exclusively in home mobility solutions, provide engineered systems specifically designed for private homes rather than commercial buildings.

What Are Residential Elevators, and How Are They Designed for Homes?

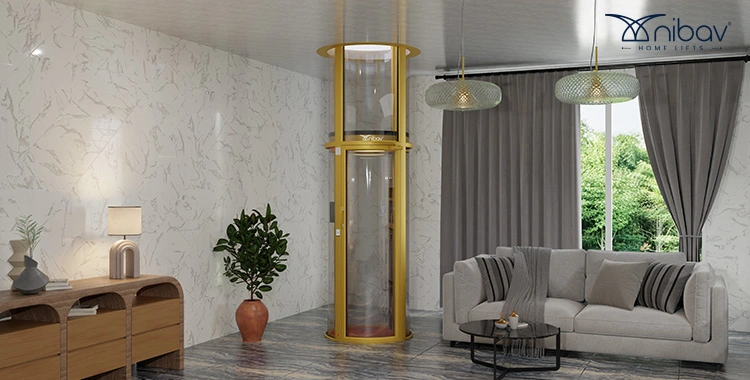

Residential elevators are designed specifically for use in homes (duplexes, villas, and landed properties) and are intended for low to moderate usage (because they are not a continuous mode of transportation).

They tend to operate at an approximate speed of 0.15–0.30 m/s with corresponding load capacities of 200 – 400 kg based on the specific configuration used. Residential elevators are generally not intended to be used for heavy, repeated usage, and therefore their duty cycle will be limited.

The majority of modern residential elevators in Malaysia now feature compact technology such as pneumatic vacuum systems, hydraulic drives, or machine-room-less (MRL) traction mechanisms. These types of systems can often be installed with minimal structural modification, run off single-phase power, and typically include battery backup in the event of a power outage for safe emergency lowering.

Design engineering of a residential elevator is focused on saving space, operating quietly, being energy efficient, and fitting seamlessly into the overall home design.

Nibav uses an air-driven pneumatic system that uses no deep pits, heavy shafts, or machine rooms, making them some of the most energy-efficient and structurally adaptable residential elevator solutions in Malaysia.

What defines commercial elevators in terms of structure/performance?

Commercial elevators are designed to operate continuously, as they carry a high volume of people in places like offices, hospitals, shopping malls, and hotels; they are designed to be used by significantly more people than residential elevators.

Commercial elevators will normally start at a speed of 0.5 m/s and will operate as high as 2.5 m/s, depending on how high the building is. They can hold anywhere from 630 kg to greater than 2000 kg of material.

On a structural level, commercial elevators require a stronger shaft, a deeper pit, more overhead clearance, and a three-phase electric supply. Most commercial elevators will use traction methods with counterweights, large electric motors, and electronic panels designed to be used frequently.

Because of being accessed by many different people, commercial elevators must also meet more stringent safety and fire codes and must be inspected and certified.

Unlike commercial systems, Nibav focuses exclusively on residential environments, ensuring that its elevators are optimized specifically for home safety, efficiency, and installation simplicity.

How Do Residential vs Commercial Elevators Differ in Installation Requirements?

One of the key differences between residential vs commercial elevators is how complex they are to install.

Residential elevators typically have the following characteristics:

• Minimal civil work necessary to install
• Do not require a deep pit
• May not be required to have a machine room
• Often operate from a single-phase electrical source
• Have a compact shaft

Modern pneumatic residential elevators installations can be quickly completed (within days) as they provide their own support.

Nibav’s pneumatic elevator systems are self-supporting and engineered for quick installation, making them highly suitable for existing homes across Malaysia without major structural modification.

For commercial elevators, significant structural shaft construction, deep pit depth, a machine room (if conventional) and industrial-grade power are required. The additional engineering and regulatory requirements to obtain approvals usually result in a longer installation time when using conventional rather than modern pneumatic elevators.

Why Do Safety Standards Differ Between Residential Elevators and Commercial Elevators?

There are both significant differences and many similarities between safety standards for residential elevators and commercial elevators.

Residential elevators feature basic safety items like emergency stop buttons, automatic brake systems, door interlock devices, alarms to alert users, and battery backup units, and compliance with the safety standards is much less complex due to the limited use of the elevators in the home.

For commercial elevators used in business, compliance with stringent public safety standards is required; therefore, these elevators typically have many more safety features than a residential elevator — automatic return-to-floor devices, fire-rated elevator doors, load monitoring devices, redundant braking systems, and emergency communication systems — and providing commercial elevator systems requires regular inspection and certified maintenance according to the Malaysian building code.

Commercial elevators require a larger design scope and higher maintenance costs than do residential elevators.

At Nibav, we have integrated several levels of safety into our residential elevator systems to meet and/or exceed international safety standards and have made the design of our elevators simple enough to be used in residential applications.

How Do Drive Systems Differ in Residential Elevators and Commercial Elevators?

The drive mechanism is a key technical distinction in residential vs commercial elevators.

Pneumatic vacuum, hydraulic drive, or compact traction systems are generally what drive residential elevators. Pneumatic systems use air pressure to create a differential to lift the car and do not require a counterweight. Hydraulic models implement pressurised fluid push from the base of the cylinder using a piston as the mechanism to lift the elevator and are generally most effective over shorter distances of travel.

Commercial elevators use traction drive systems composed of a counterweight and a large motor with the steel lift cables used to lift the elevator. High-rise and high-volume product lines RTD (VFD) provide smooth acceleration/deceleration.

The Nibav air-driven pneumatic system does away with counterweights and cables, eliminating much of the mechanical complexity while allowing energy efficient and consistent long-term reliability in residential applications.

How Do Maintenance and Operational Costs Compare in Residential vs Commercial Elevators?

Residential elevators require less maintenance than commercial elevators due to the fact that they see fewer trips (due to lower usage) and therefore have reduced wear and complexity in terms of their respective maintenance schedules, as well as significantly lower annual maintenance costs.

Maintenance on a residential elevator includes inspection of the brakes, drive mechanism, and emergency devices.

Because of the continuous use of commercial elevators, they need preventive maintenance. Commercial elevators will have higher energy usage, replacement cycles on parts, and additional compliance inspections—resulting in higher long-term operational costs.

With fewer moving mechanical parts and no hydraulic oil systems, Nibav residential elevators are engineered for simplified servicing and reduced long-term operational costs.

Are Residential Elevators Suitable for Commercial Use?

Residential elevators are not built for offices; their weight limit, speed, and operational frequency were created specifically for homes only.

Using residential elevators in businesses can lead to mechanical breakdowns, non-approval from authorities, unsafe situations and warranty issues. Commercial elevators in business buildings are designed for high density and continuous use.

Conclusion

Selecting an elevator requires an understanding of the differences between residential elevators and commercial elevators so you have the right type of vertical transportation system. The differences between these two types of elevator systems are based on their engineering design, structural requirements, safety standards, and maintenance obligations, all of which differ greatly.

Homeowners in Malaysia need to choose a system specifically designed for their home; this will ensure that the system is safe, efficient, and meets the required standards.

For homeowners looking for the most advanced engineered solutions for residential elevator systems, simple installation, an energy-efficient system, and a better overall safety system, Nibav offers the most options for residential living solutions, since its only focus is on home mobility and not commercial lift systems.

FAQs

1. What distinguishes a residential elevator from a commercial elevator?

Designing a residential elevator differs greatly from designing a commercial elevator; a residential elevator is designed to provide limited private use in a home, while a commercial elevator is designed to provide high-volume service in a busy space with a larger load capacity and ongoing consistent use.

2. Can I install a residential elevator in my existing home?

Yes, many companies design residential elevators that will retrofit into an existing structure without significant modifications to the structure, including pneumatic systems offered by Nibav.

3. Are commercial elevators more expensive than residential elevators?

Commercial elevators incur significant additional costs for structural modifications and more complex compliance systems, plus additional maintenance costs, than those of residential elevators.

4. Will my residential elevator require a separate machine room?

Some types of residential elevators are machine-room-less (or self-supporting), including pneumatic systems provided by Nibav, and therefore do not require a separate machine room.

5. Are residential elevators safe?

Both types of elevators are safe when operated appropriately; residential elevators include essential safety mechanisms, and companies like Nibav integrate multiple safety layers specifically engineered for home environments.
