Do You Need a Shaft for a Residential Elevator? Expert Guide

For most Malaysians, the moment they seriously consider a home elevator, one thought quickly derails the whole idea: the shaft. The mental image is immediate and discouraging walls being torn open, floors reinforced, contractors in and out for weeks, and a dust-covered home that barely functions as a home during the process. Even the most motivated homeowner may shelve the idea before making a single enquiry.

 This mental barrier is understandableit is entirely based on an outdated understanding of what residential elevators require. The idea that a home elevator means a shaft, a pit, and a machine room was accurate for traditional hydraulic and traction lifts, which dominated the market for decades. It is not accurate for the generation of pneumatic vacuum elevators that have since transformed the home mobility sector entirely.

 This guide answers the core question definitively: no, you do not always need a traditional shaft for a residential elevator. We explain exactly why; what the modern alternatives look like; and how a shaftless home elevator functions in a real Malaysian property with real space requirements, real installation timelines, and real cost implications.

 Who Is Asking This Question and Why It Matters

Homeowners who search for answers to this topic typically fall into a few specific and recognisable categories. Understanding them helps clarify why the shaftless solution is not just an option it is often the only realistic path forward.

• Existing homeowners who cannot or will not carry out major structural work in a property they are living in
• Families caring for elderly or mobility-impaired relatives who need a working solution within days or weeks, not months
• New home builders who want to future-proof their property with a lift but want to avoid locking in a traditional shaft during construction
• Budget-conscious homeowners who have received traditional elevator quotations and found the civil construction costs alone to be prohibitive

 For all of these people, the shaftless residential elevator is not just a convenient alternative it is frequently the defining factor that makes a home elevator possible at all.

 Traditional Residential Elevators: The Full Structural Picture

To appreciate why shaftless elevators are significant, it is worth understanding clearly what traditional residential elevators actually require in structural, logistical, and financial terms:

Elevator Shaft

A fully enclosed, dedicated vertical space built into the fabric of the home. In new construction, the elevator shaft is planned from the outset. In an existing home, it requires breaking through walls, creating new structural openings, and building reinforced enclosures on every floor a significant civil engineering undertaking.

Pit

A recessed space below the ground floor leveltypically 500 mm to 1,500 mm deepwill accommodate the lift mechanism at its lowest point. Requires breaking through the ground floor concrete slab and excavating below. Many existing Malaysian homes cannot accommodate this without incurring significant costs and disruptions.

Machine Room

A dedicated roomoften the size of a small bedroomhouses the motor, control panels, and hydraulic or cable mechanisms. The machine room is typically built above or adjacent to the elevator shaft. In a compact home, the elevator shaft represents a permanent loss of usable living space.

 Structural Reinforcement

Walls or beams adjacent to the shaft may require additional reinforcement to safely support the load and dynamic forces of a full elevator system over decades of use.

 The combined cost of all these civil requirements before purchasing the lift unit itself can run from MYR 50,000 to over MYR 100,000. The construction period can span weeks to months. For most Malaysian homeowners with existing properties, this makes traditional elevators impractical at best and unaffordable at worst.

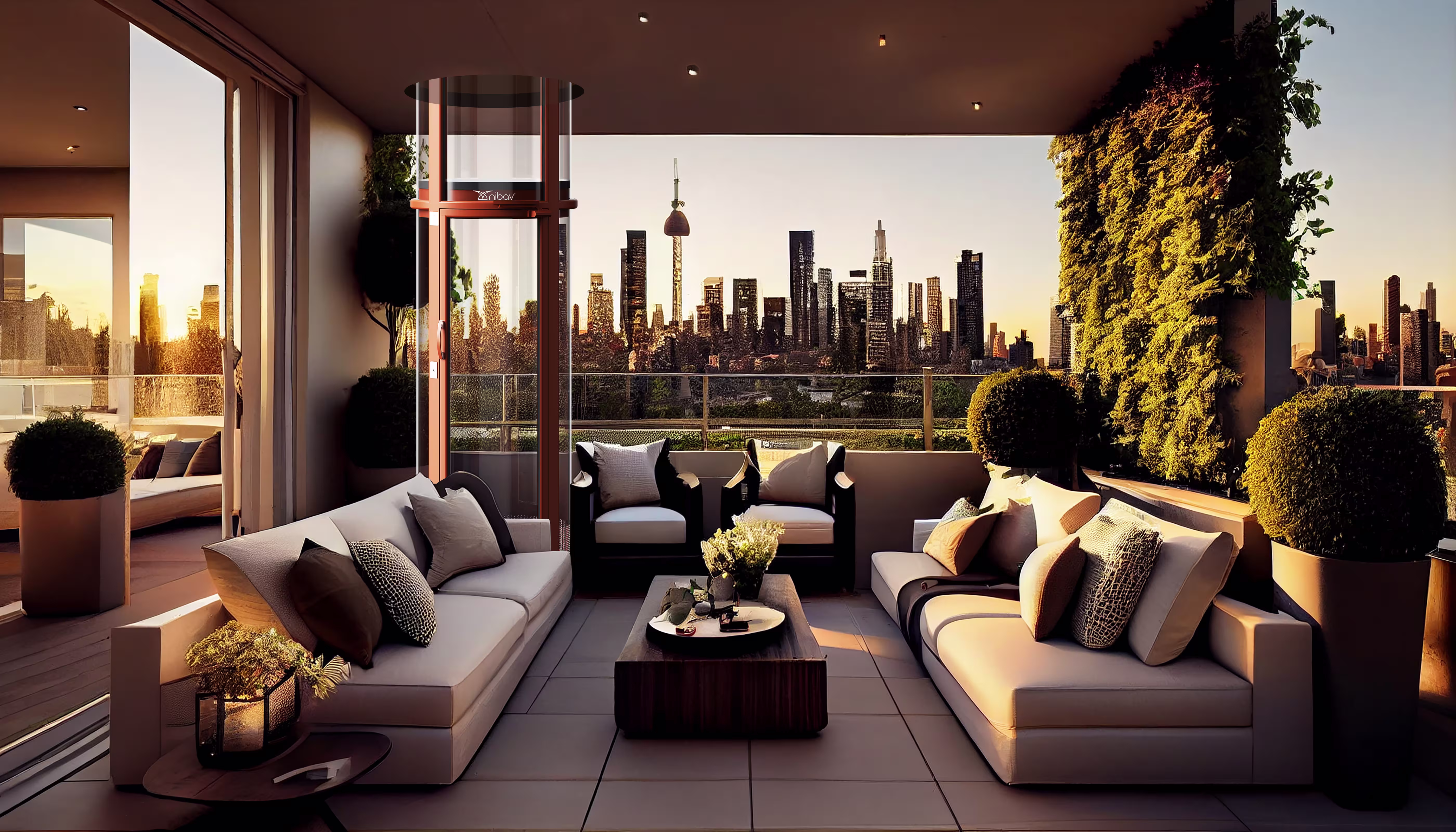

Shaftless Home Elevators: How They Work Without a Traditional Shaft

A shaftless home elevator like those in Nibav’s range uses pneumatic vacuum technology and the engineering difference is fundamental, not superficial:

Self-Supporting Cylinder: Instead of a built-in shaft, the Nibav lift arrives with its own transparent polycarbonate cylinder. This cylinder is fully self-supporting it stands independently on the existing floor and integrates with the structure only through the circular floor openings it travels through. No wall integration. No beam attachment. No additional support structure required.

No Pit Required: Because the lift mechanism operates entirely above floor level, there is no need for any pit or subfloor excavation. The lift installs directly onto any standard finished floor concrete, tile, or wood.

 No Machine Room Required: The vacuum pump and motor are integrated compactly into the top of the cylinder itself. The entire mechanical system is contained within the lift unit quiet, sealed, and requiring no external housing.

 Floor Penetration Only: The sole structural change needed is a precisely cut circular opening through the floor slab for each level the lift will serve. This is a controlled, targeted process carried out by Nibav’s installation team in hours, not days. The result: a pitless elevator for home use, installed in 4 to 5 working days, with no heavy civil works and no structural disruption beyond these focused openings.

Panoramic Elevator Design: The Aesthetic Advantage of Going Shaftless

There is an unexpected benefit to the shaftless approach that goes beyond practicality: it is considerably more beautiful. Because the Nibav cylinder is built from reinforced, transparent polycarbonate, the lift is inherently panoramic offering 360-degree visibility in all directions.

 A panoramic elevator enclosed within a traditional shaft loses most of this visual openness, as the shaft walls surround and obscure the cabin. The shaftless design preserves the full glass experience at every floor level. This delivers tangible aesthetic advantages:

• Natural light flows freely through the transparent cylinder, brightening surrounding areas on every floor.
• The lift becomes a visual centrepiece not a hidden utility enhancing the home’s design narrative
• The open feel eliminates any sense of claustrophobia, making the ride pleasant for all users, including elderly or anxious passengers.
• The transparent cylinder makes adjacent spaces feel more open and connected across floors.

 Combined with Nibav’s range of premium interior finishes, HeartLine personalised engraving, SkyMark illuminated ceiling, and VividTouch smart display, the shaftless design elevates the entire experience from a functional utility to a genuine statement of lifestyle.

Space Requirements: How Much Does a Shaftless Elevator Actually Need?

The floor space required for a Nibav shaftless residential elevator is considerably more compact than traditional alternatives and well within the available space of most Malaysian multi-storey homes:

Series III Standard: 935 mm external diameter, 1,010 mm clear space required
Series III Max: 1343 mm / 53 in, 1430 mm / 56 in clear space required
Series IV Standard / Series V Standard: 933 mm external diameter, 1,000 mm clear space required.
Series IV Max / Series V Max: 1,363 mm external diameter, 1,430 mm clear space required.

 All models support up to G+3 (4 stops) with a maximum travel height of 13,500 mm comfortably covering the vast majority of Malaysian multi-storey residential properties, from modest terrace homes to large bungalows and villas. Common installation positions include stair voids, corner spaces in the living or dining area, light wells, and adjacent to existing staircases.

A shaftless home elevator is not a workaround or a compromise. For most Malaysian homes and especially for any existing property it is simply the smarter, faster, and more beautiful solution. The traditional shaft is a legacy requirement of older technology. Modern pneumatic engineering has rendered it optional and, for retrofit installations across Malaysia, largely unnecessary.

 Frequently Asked Questions

Q1: Can a residential elevator be installed in my home without building a shaft?

A: Yes. Shaftless home elevators like the Nibav vacuum lift use a self-supporting polycarbonate cylinder that requires no built-in shaft, no pit, and no machine room. Only precisely cut circular floor openings are needed for each floor the lift will serve.

Q2: What exactly is a pitless elevator for home use?

A: A pitless elevator is installed without any excavation below the ground floor. Nibav’s pneumatic lifts are entirely pitless the full mechanism operates above floor level, installed directly on any standard finished surface without breaking through or reinforcing the ground floor slab.

 Q3: Is a shaftless home elevator as safe as a traditional elevator?

A: Yes. Nibav shaftless elevators are TÜV NORD certified and comply with European safety and performance standards. They include emergency descent, triple-layer door safety, smart overload protection, and a 25-year motor warranty on Series V models meeting or exceeding the safety profile of traditional residential elevator systems.

Q4: Can I install a shaftless elevator in my existing Malaysian home?

A: In almost all cases, yes. Nibav offers free site feasibility assessments to confirm suitability for your specific property. The self-supporting design works in terrace homes, semi-Ds, bungalows, duplexes, and villasboth new builds and existing homes across all major regions of Malaysia.

Q5: How long does it take to install a shaftless residential elevator?

A: Nibav shaftless home elevators are installed in 4 to 5 working days on a prepared site. The modular, pre-engineered components are transported through standard doorways, and the process is clean, quiet, and minimally disruptive to daily household routines a stark contrast to the weeks or months required for traditional shaft-based elevator installation.
