Small Home Elevators Without Shaft or Pit: Complete Guide

You have been researching home elevators for weeks. Every result either leads to a product requiring months of construction, a deep pit beneath the ground floor, a machine room above the shaft, and a bill that looks more like a full property renovation. Then the question forms: is there a small elevator for home use that does not require all of this?

The answer is yes and it has been quietly transforming Malaysian homes for years. A pitless home elevator, also called a shaftless home elevator, is a self-supporting, air-driven lift that installs on your existing floor, requires zero structural modifications, and is fully operational in 3 to 5 days. This guide explains exactly how it works, who it suits, and how to choose the right model.

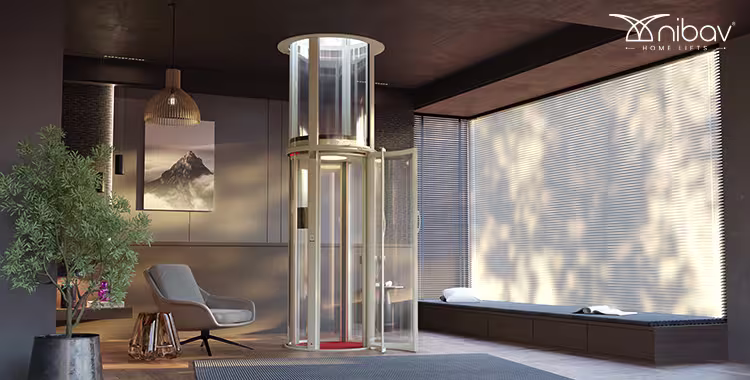

What Is a Pitless Home Elevator?

A pitless home elevator operates without any pit excavation beneath the ground floor and without a dedicated machine room. Traditional elevators require a pit typically 300 to 600mm deep dug into the building’s foundation, plus a reinforced shaft and a machine room housing the drive mechanism. Pitless elevators eliminate all three of these requirements entirely.

The technology is pneumatic. The elevator moves inside a self-supporting transparent cylinder using air pressure differentials. On ascent, a vacuum pump reduces air pressure above the cabin, and the higher pressure below pushes it upward. On descent, controlled pressure equalisation guides the cabin down smoothly at zero electrical cost. The cylinder stands on your existing floor and supports itself completely. No surrounding walls, no structural reinforcement, no civil engineering of any kind.

Why Malaysian Homes Are the Perfect Fit

The majority of Malaysian residential properties terrace houses, semi-Ds, duplexes, bungalows, and low-rise villas were never designed with elevator shafts in mind. Retrofitting a conventional lift into these properties would require structural surveys, building permits, significant reinforcement work, and months of construction that disrupts daily household life. For most homeowners, this makes traditional elevators completely impractical.

A shaftless home elevator sidesteps every single one of these barriers. Because it is freestanding, modular, and installed on any flat floor surface, it works with the home you already have not the one you would need to rebuild around it. This is precisely why pitless vacuum lifts have become the most adopted residential elevator solution across all property types in Malaysia.

How Much Space Does a Compact Elevator for Home Use Actually Need?

This is consistently the question that surprises people most. Nibav measures space efficiency using a Return of Space (ROS) metric the percentage of the lift’s external footprint returned as usable cabin interior. The numbers are smaller than most homeowners expect:

• Series III Standard: External 935mm, internal cabin 749mm the most compact pitless elevator in the range
• Series III Max: External 1,343mm, internal 1,160mm wheelchair-accessible footprint
• Series IV Standard: External 933mm, internal 830mm, ROS 72%
• Series IV Max: External 1,363mm, internal 1,240mm, ROS 77%
• Series V Standard: External 933mm, internal 830mm with full premium smart feature suite
• Series V Max: External 1,363mm, internal 1,240mm, ROS 77% most spacious pitless option available

Because the cylinder is entirely self-supporting, no additional shaft wall space surrounds it. What you see is precisely what it occupies and the ROS figures show how much of that is returned to you as a usable cabin.

What Actually Happens During a 4 to 5 Day Installation

The installation of a shaftless home elevator is categorically different from anything most homeowners associate with the word. No excavation crew. No concrete poured. No walls opened. Nibav’s modular components are pre-engineered to pass through standard doorways they arrive, are assembled in sequence on your existing floor surface, connected to a standard single-phase electrical point, and tested by certified technicians before handover.

Most households report that the process was quieter and less disruptive than a kitchen renovation. The team arrives, works methodically, and leaves behind a fully operational, certified home elevator. Your home remains completely liveable throughout no temporary relocations, no covered furniture, no construction dust.

Which Pitless Elevator Is Right for Your Home?

The right model depends on three factors: floors to serve, the physical needs of the people using it most, and the design standard of the home it will live in.

For compact Malaysian homes with standard mobility needs, the Series III Standard is the most space-efficient and accessible starting point. The Series III Max steps up for households where wheelchair access or multiple simultaneous users are a priority. The Series IV Standard and Series IV Max add AI, voice command readiness, and Alexa integration for homeowners who want technology alongside accessibility. At the premium end, the Series V Standard and Series V Max introduce HeartLine laser cabin engraving, SkyMark illuminated ceiling, SmartConnect emergency communication, AutoGlide sensor doors, and the CoreShield 25-year motor and vacuum seal warranty the most complete compact elevator for home use available in Malaysia today.

Safety Without a Shaft: Is It Compromised?

This deserves a direct answer: no. The absence of a traditional shaft does not reduce safety. Pitless air-driven elevators actually eliminate several of the most common failure modes of conventional lifts no cables to fray, no hydraulic seals to rupture, no counterweight systems to malfunction.

Every Nibav pitless elevator includes automatic emergency descent, triple-layer door locking, Smart Overload Alert, Child Safety Lock, 30-minute auxiliary backup power, and Brake 3.0 dual-layer braking. All models carry TÜV NORD certification the most rigorous safety standards applied to residential elevators anywhere in the world.

If you have been putting off the home elevator decision because you assumed it meant months of construction, significant structural changes, and a bill that felt out of reach you were thinking about the wrong kind of elevator. The right one is already designed for your home exactly as it stands today.

Book a Nibav site consultation at nibavlifts.my our certified consultants will assess your space and recommend the right pitless model for your home.

Frequently Asked Questions

Q1. What is a pitless home elevator and how does it work?

A pitless home elevator is a freestanding residential lift that uses air pressure differentials to move a cabin inside a transparent self-supporting cylinder. It requires no pit excavation, no machine room, and no structural shaft. When ascending, a vacuum pump reduces pressure above the cabin; descent is powered by natural air pressure equalisation at zero electrical cost.

Q2. How much floor space does a compact elevator for home use require?

Nibav’s most compact model the Series III Standard requires an external footprint of just 935mm in diameter. The largest model, the Series V Max, requires 1,363mm externally. Because the elevator is fully self-supporting, no surrounding shaft wall space is needed beyond the cylinder’s own diameter, meaning the footprint is exactly what it appears to be.

Q3. Can a shaftless elevator be installed in an existing terrace house or duplex?

Yes pitless elevators are specifically designed for retrofit installation. They require only a flat floor surface and a single-phase electrical connection. No structural surveys, no building permits for shaft construction, and no modifications to walls, ceilings, or foundations are needed, making them ideal for the majority of occupied Malaysian residential properties.

Q4. How long does installation actually take?

Nibav’s pitless elevators are installed in 4 to 5 working days on a prepared site. Modular components arrive pre-engineered and pass through standard doorways. Most households experience minimal disruption, and the elevator is fully tested and operational before the installation team leaves.

Q5. Are pitless home elevators genuinely safe for elderly users and children?

Yes. Every Nibav pitless elevator includes automatic emergency descent, triple-layer door locking, Child Safety Lock, Smart Overload Alert, and 30-minute auxiliary backup power. All models are TÜV NORD certified and CE compliant, meeting European safety standards across the full range.

Q6. What is the starting price for a pitless elevator in Malaysia?

Nibav’s pitless home elevators start at MYR 69,900* for the Series III Standard. The Series III Max starts at MYR 99,900*, the Series IV Standard at MYR 1,09,900*, and the Series IV Max at MYR 1,36,900*. Series V Standard and V Max pricing is available on consultation at nibavlifts.my.
